Fire Pumps

R

RASHA ENGINEERING

Key Info

Split Case Pumps : High-flow capacity (up to 5000+ GPM), designed for easy "in-line" maintenance without disconnecting piping.
End Suction Pumps : Compact footprint; ideal for smaller textile or pharma units requiring up to 1500 GPM.
Vertical Turbine : Specialized for deep sumps or underground reservoirs; eliminates the need for priming.
Packaged/Containerized Systems : Fully integrated units (Pump + Driver + Controller) on a single skid or inside a weather-proof ISO container.
Fuel Tanks : UL-listed, double-wall options available to prevent environmental leaks (crucial for LEED points).
Anti-Vortex Plates : Stainless steel or galvanized construction; prevents air suction to ensure 100% pump efficiency.
REQUEST A QUOTE

Bristol Fire Protection Systems: The Gold Standard in Industrial Safety

In the high-stakes environments of Bangladesh’s RMG, Pharmaceutical, and Power sectors, Bristol provides a comprehensive range of fire suppression solutions. Engineered in accordance with NFPA 20 and carrying UL Listing & FM Approval, our systems ensure that your facility remains compliant with international buyer audits (RSC/Alliance) while offering the lowest total cost of ownership.

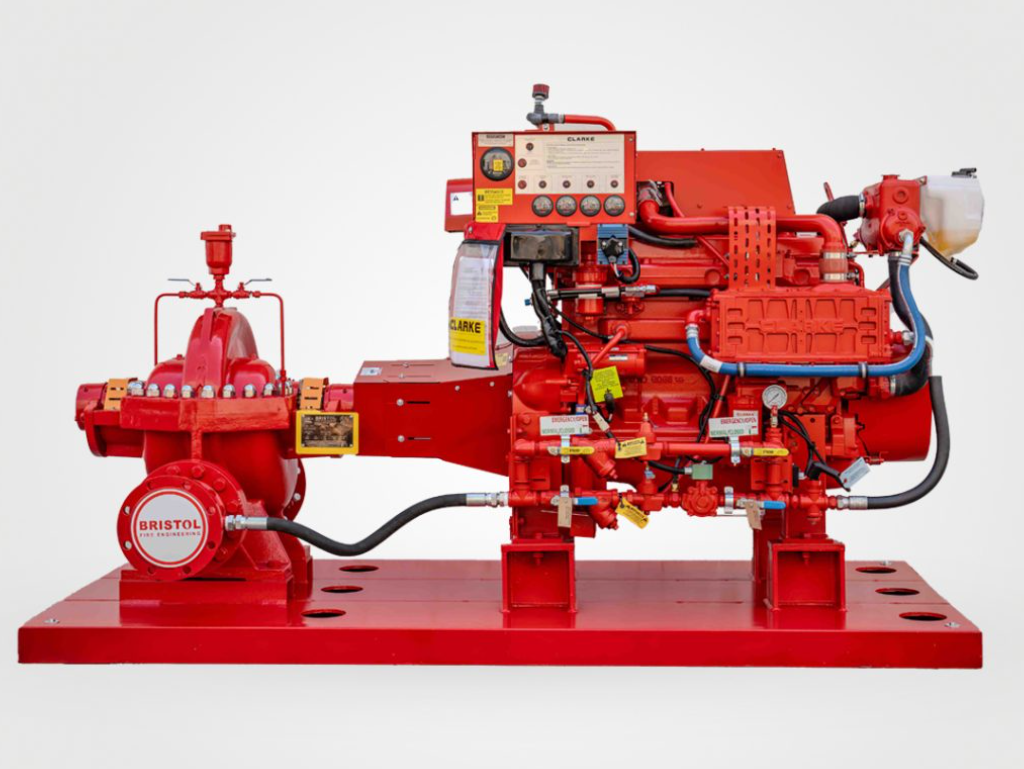

1. Horizontal Split Case Fire Pumps (BSP Series)

  1. The Powerhouse: Designed for large-scale industrial complexes and high-rise factories.
  2. Key Specs: Capacity from 300 to 3,000 GPM; Head up to 209 meters.
  3. ROI Focus: The "split" casing allows for internal inspection and maintenance without disconnecting pipework or moving the motor. This reduces maintenance labor by 40% and ensures your system is back online faster.
  4. Design: Double-suction impellers minimize radial loads, extending the life of SKF bearings and mechanical seals.

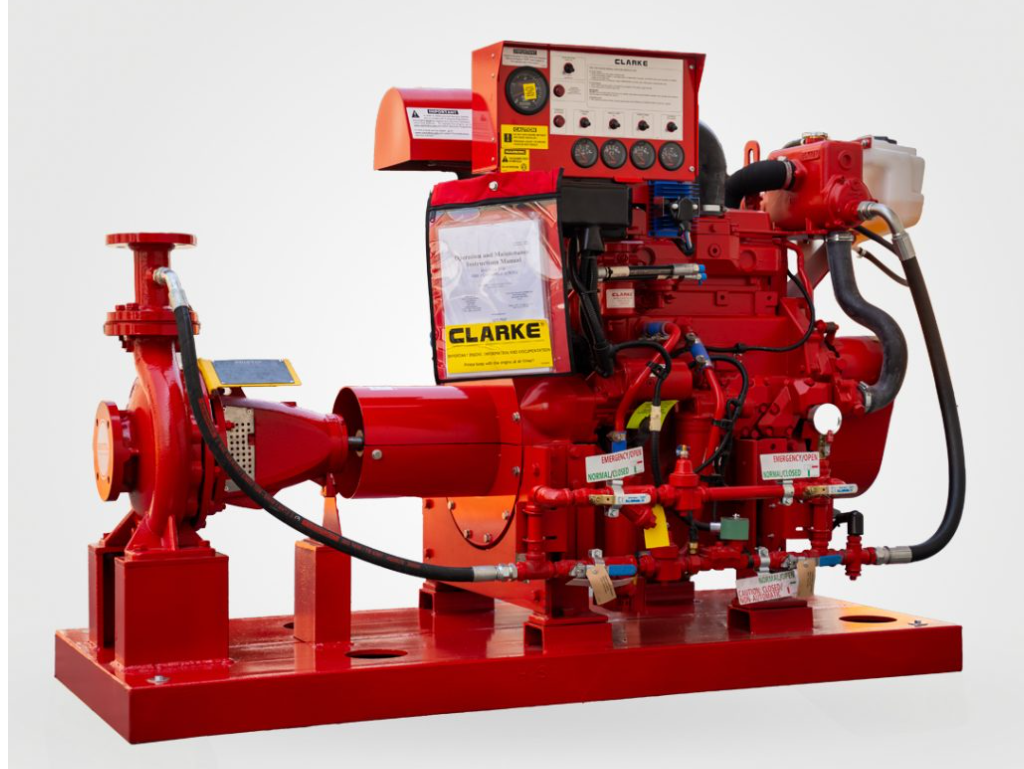

2. End Suction Fire Pumps

  1. The Compact Specialist: Ideal for smaller production units or dedicated warehouse protection where space is premium.
  2. Key Specs: Capacity from 50 to 1,000 GPM.
  3. Performance: Features dynamically balanced impellers to minimize vibration and noise, crucial for mixed-use industrial buildings in urban Dhaka.

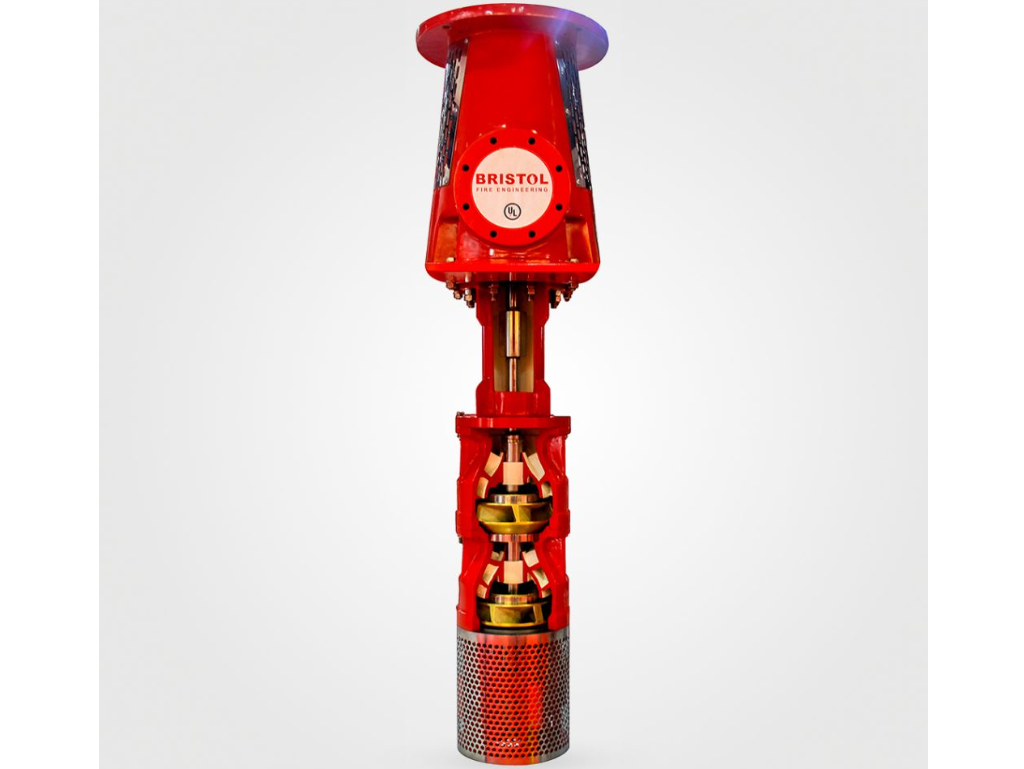

3. Vertical Turbine Fire Pumps

  1. The Reservoir Expert: Specifically engineered for facilities using underground water reservoirs where the water level is below the pump suction.
  2. Key Specs: Capacity up to 5,000 GPM.
  3. Benefit: The submerged impeller eliminates the need for priming systems, guaranteeing a 100% successful start during an emergency. Multi-stage construction allows for high-pressure delivery in multi-story RMG towers.

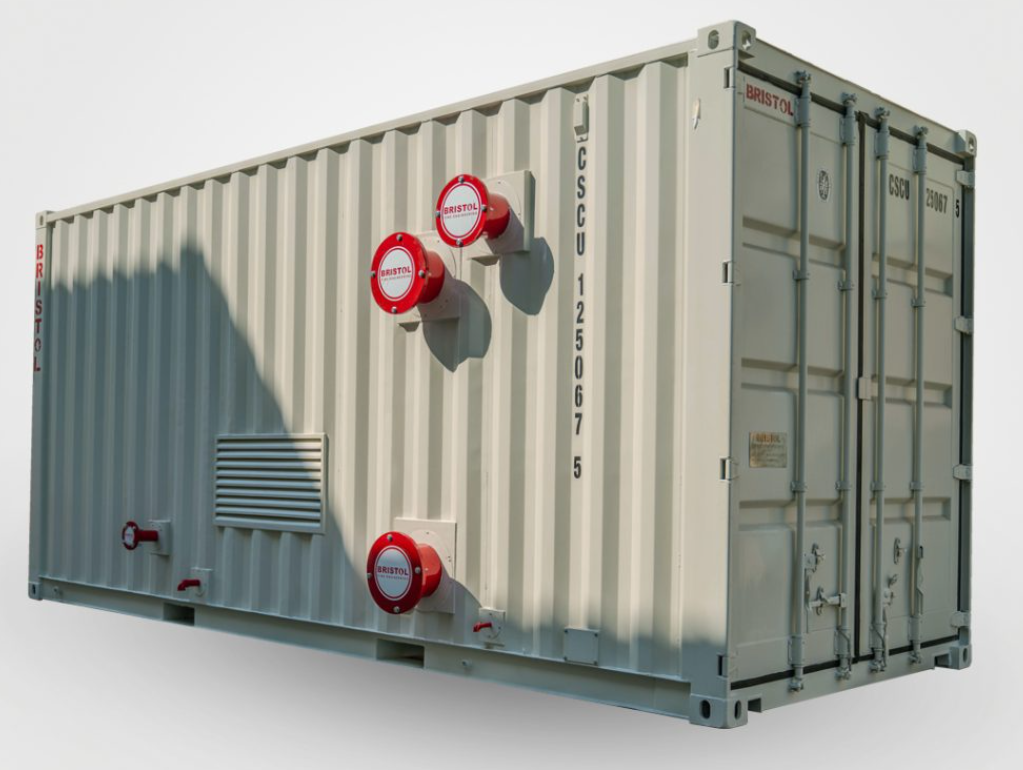

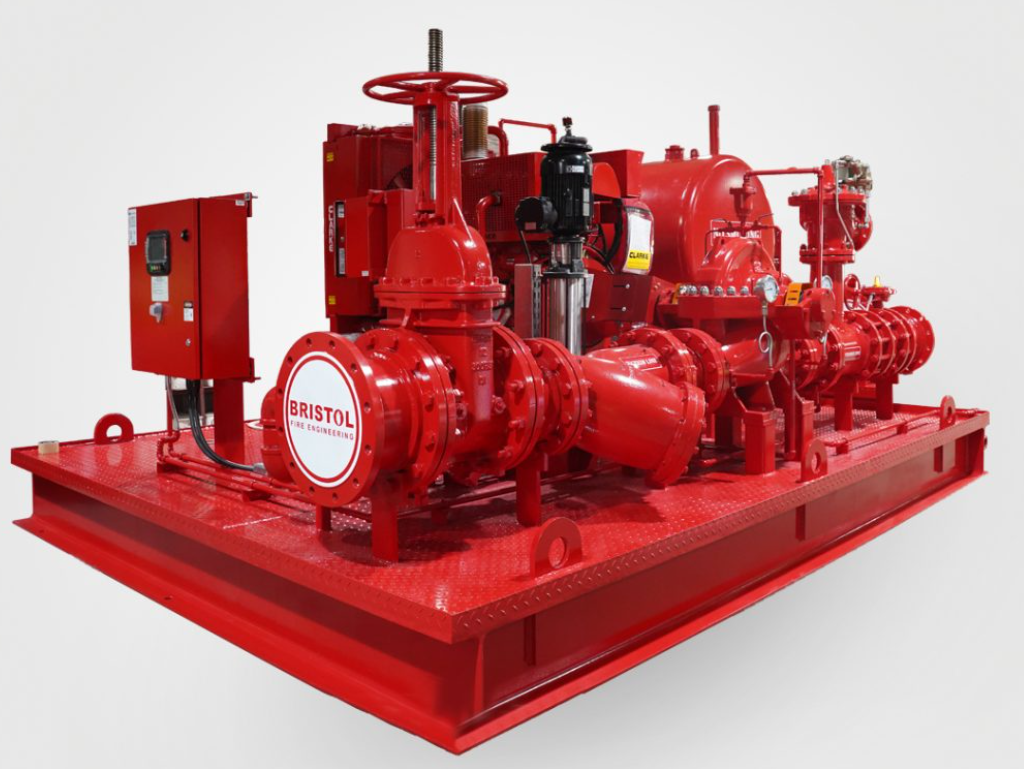

4. Packaged & Containerized Fire Fighting Systems

  1. The Ready-to-Run Solution: A complete fire pump house (Main pump, Jockey pump, and Controllers) mounted on a single skid or inside an ISO-certified container.
  2. Efficiency: Factory-tested as a single unit to eliminate on-site assembly errors.
  3. Green Factory Edge: Perfect for LEED-certified factories looking to minimize their construction footprint and ensure 100% compliance with international safety benchmarks.

5. Critical Accessories: Fuel Tanks & Anti-Vortex Plates

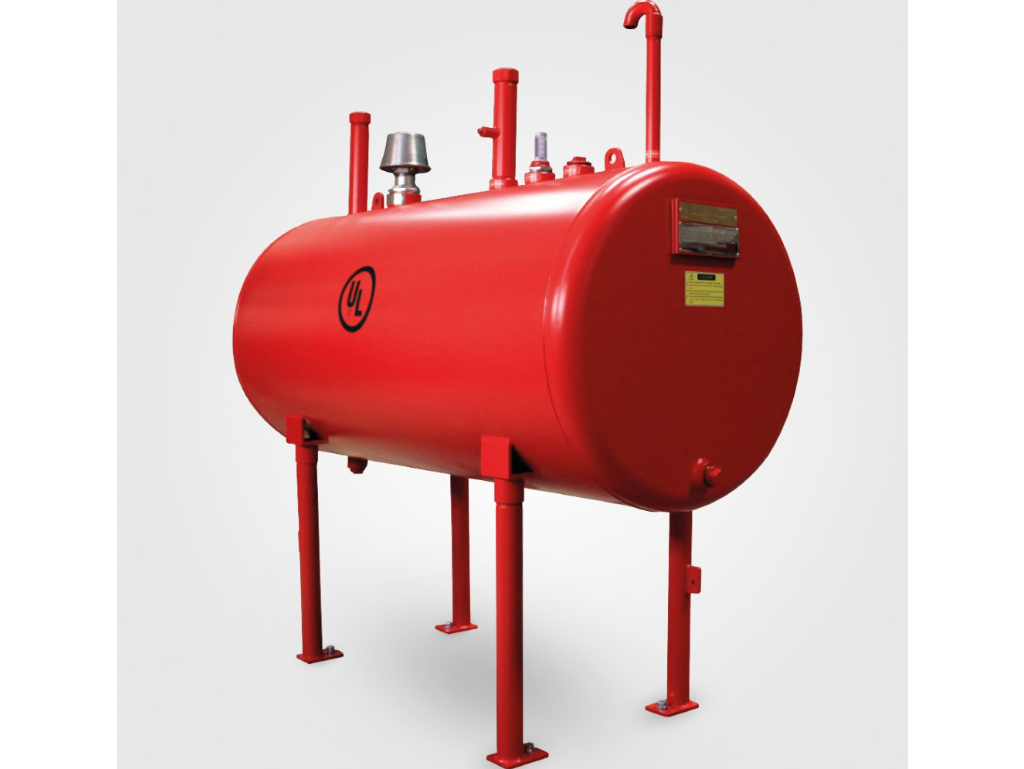

  1. UL-Listed Fuel Tanks: Constructed from high-grade steel (UL-142 standard) to prevent leaks and ensure 8–24 hours of uninterrupted diesel engine operation.

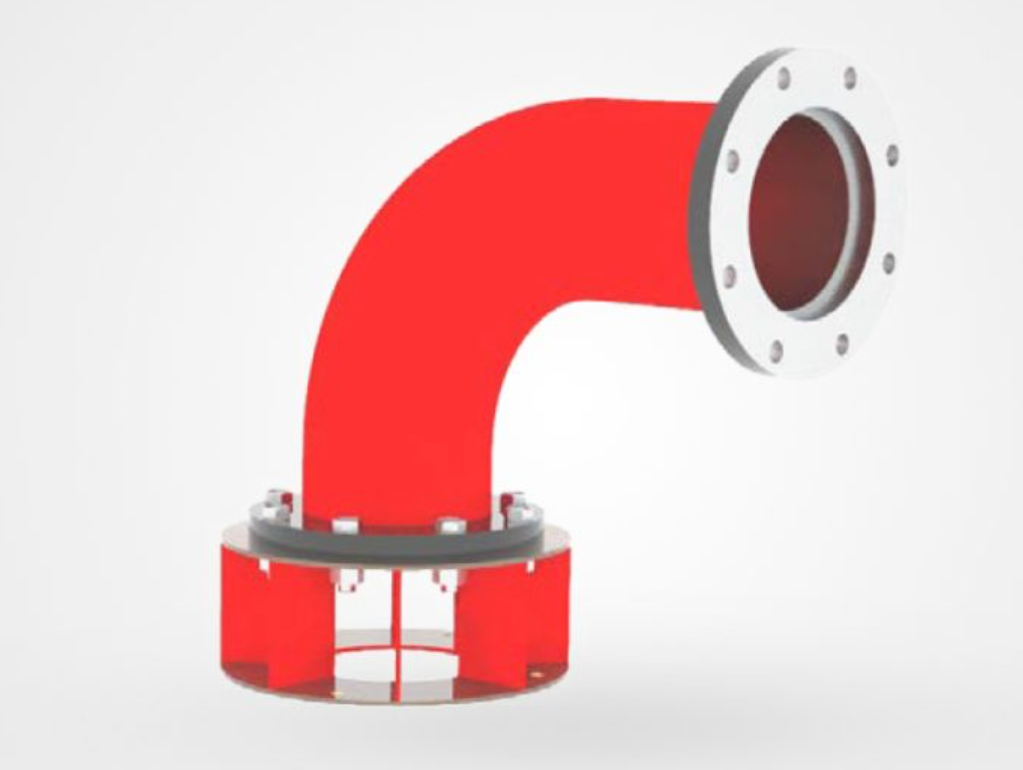

  2. Anti-Vortex Plates: Designed per NFPA 22, these plates transform turbulent suction into smooth laminar flow. They prevent cavitation, which is the #1 cause of impeller failure, saving you from expensive pump overhauls.



Content for Technical Specifications goes here. You can add tables, lists, and detailed information about the product's features.

Horizontal Split Case Pumps (BSP Series) Performance Range: * Capacity: 300 GPM to 3,000 GPM (UL/FM Range) | Up to 5,000 GPM (Non-listed). Head/Pressure: 50 meters to 209 meters (70 PSI to 300+ PSI). Materials of Construction: Casing: Heavy-duty Ductile Iron (ASTM A536) for high-pressure integrity. Impeller: Precision-cast Bronze or Stainless Steel; Double-suction design to eliminate axial thrust. Shaft: High-tensile Alloy Steel with Stainless Steel sleeves to prevent corrosion at the packing gland. Bearings: SKF grease-lubricated ball bearings (L-10 life > 5,000 hours). Key Feature: Split-case design allows for "in-place" maintenance of the rotating assembly without disturbing suction/discharge piping
End Suction Pumps Performance Range: * Capacity: 50 GPM up to 1,000 GPM. Head: 40 meters to 209 meters. Design: Radial suction and vertical centerline discharge (Self-venting). Certification: UL File No: EX16459 | FM Class 1319. Applications: Ideal for smaller factories, dedicated hydrant systems, or where space is at a premium.
Vertical Turbine Pumps Performance Range: * Capacity: 200 GPM up to 5,000 GPM. Head: 50 meters to 210 meters. Configuration: Multi-stage centrifugal design with submerged impellers. Lubrication: Water-lubricated line-shaft bearings (Open line shaft). Compliance: Specifically permitted by NFPA 20 for static suction lift conditions (where the water source is below ground level).
Packaged & Containerized Systems System Integration: Includes Main Pump (Diesel/Electric), Jockey Pump, UL-Listed Controllers, Fuel Tank, and Sensing Lines. Enclosure: 20ft or 40ft ISO Standard/High Cube containers. Protection: Fire-rated/retardant insulation (Rockwool or PIR panels) with GRP-coated waterproof flooring. Operational Range: Flow up to 5,500 GPM; Pressure up to 200 meters. Benefit: 100% factory-tested; requires only single-point power and pipe connection at the site.
Component Specifications Fuel Tanks: * Construction: UL-142 Aboveground steel tanks. Features: Double-wall containment, level gauges, and vent caps for safe diesel storage. Anti-Vortex Plates: Function: Eliminates air entrainment and vortexing in suction tanks. Standard: Fabricated as per NFPA 22 requirements to ensure laminar flow into the pump suction.
