Packaged Fire Fighting System (NFPA 20 Compliant)
Key Info
| Product Type | : | Packaged Fire Fighting Pump System (Single / Multi Pump) |
| Mounting | : | Factory-assembled on a single skid |
| Components Included | : | Main fire pump, jockey pump, controllers, piping, and accessories |
| Design Standard | : | NFPA 20 & applicable international standards |
| Application | : | Industrial, commercial, and residential fire protection systems |
| Installation | : | Plug-and-play design; only power and piping connections required on site |
| Testing | : | Factory tested as per international standards |
| Flow Capacity | : | Up to 5,500 GPM |
| Pressure Range | : | 40 m to 200 m |
| UL / FM Listed Range | : | Up to 3,000 GPM |

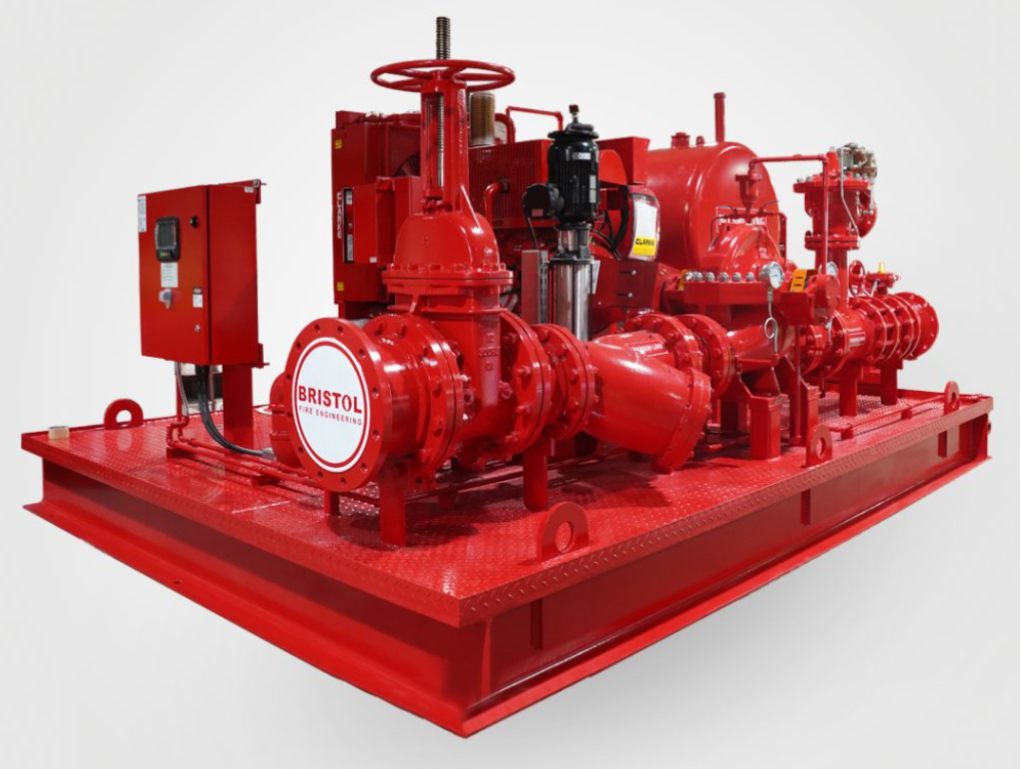

Bristol supplies Fully Engineered Fire Fighting Packaged systems from simplest Single pump system to the most complex Multi- pump system mounted on single skid. In this, Main fire pumps, Jockey pumps, controllers and all accessories are mounted on Single skid.
Features:
- Bristol packaged pump set supplied with single Skid Fully designed based on Load calculations along Lifting points based on Centre of gravity
- Highly Engineered and constructed in accordance with NFPA20
- Our Dedicated Engineering team design packages to your projectspecifications and requirements following to International standards
- Bristol cost competitive Packaged pump set save your space and time as they Engineered accurately to fit the specified area. Only Power & Pipe connection to be made at site & system is ready for use
- Bristol packaged pump sets are Factory tested as per stringent International standards
- All parts are designed based on Ergonomic consideration so that ease of accessing all instrument, valves, fittings etc
- These sets are supplied with complete Electrical connections and piping’s which includes Suction line, Discharge line, Test line, PRV line, Sensing line, Fuel In & outlet, pump Drain, Sensing line drain, Engine drain, CRV drain etc.
All piping’s are in accordance with customer requirements & following to NFPA requirement supported within Skid.
These are meticulously manufactured fire pump Packages provide reliable and trust- worthy service in Fire Fighting Application.
Content for Technical Specifications goes here. You can add tables, lists, and detailed information about the product's features.
| Pump Configuration | Single Pump / Multi-Pump Arrangement Main Fire Pump with Jockey Pump Electric Motor Driven / Diesel Engine Driven (as per project requirement) |
| Design & Standards | Designed and manufactured in accordance with NFPA 20 Compliant with applicable international fire protection standards UL / FM listed options available |
| Flow Capacity | Up to 5,500 GPM UL / FM Listed: Up to 3,000 GPM |
| Pressure Range | 40 meters to 200 meters |
| Skid & Structure | Heavy-duty fabricated steel skid Designed based on load calculations and center of gravity Integrated lifting lugs for safe handling and installation |
| Piping System | Factory-fabricated and installed piping as per NFPA requirements Includes suction, discharge, test, PRV, sensing, fuel inlet/outlet, drain, and relief lines Flanged connections with isolation and non-return valves |
| Control System | Fire pump controllers compliant with NFPA standards Automatic and manual operation Complete wiring and electrical terminations provided |
| Testing & Inspection | Factory performance tested as per international standards Hydrostatic and functional testing prior to dispatch |
| Finish & Protection | Industrial-grade corrosion-resistant coating Suitable for indoor and outdoor installation |
| Application | Industrial plants Commercial buildings Residential complexes Warehouses and infrastructure projects |
